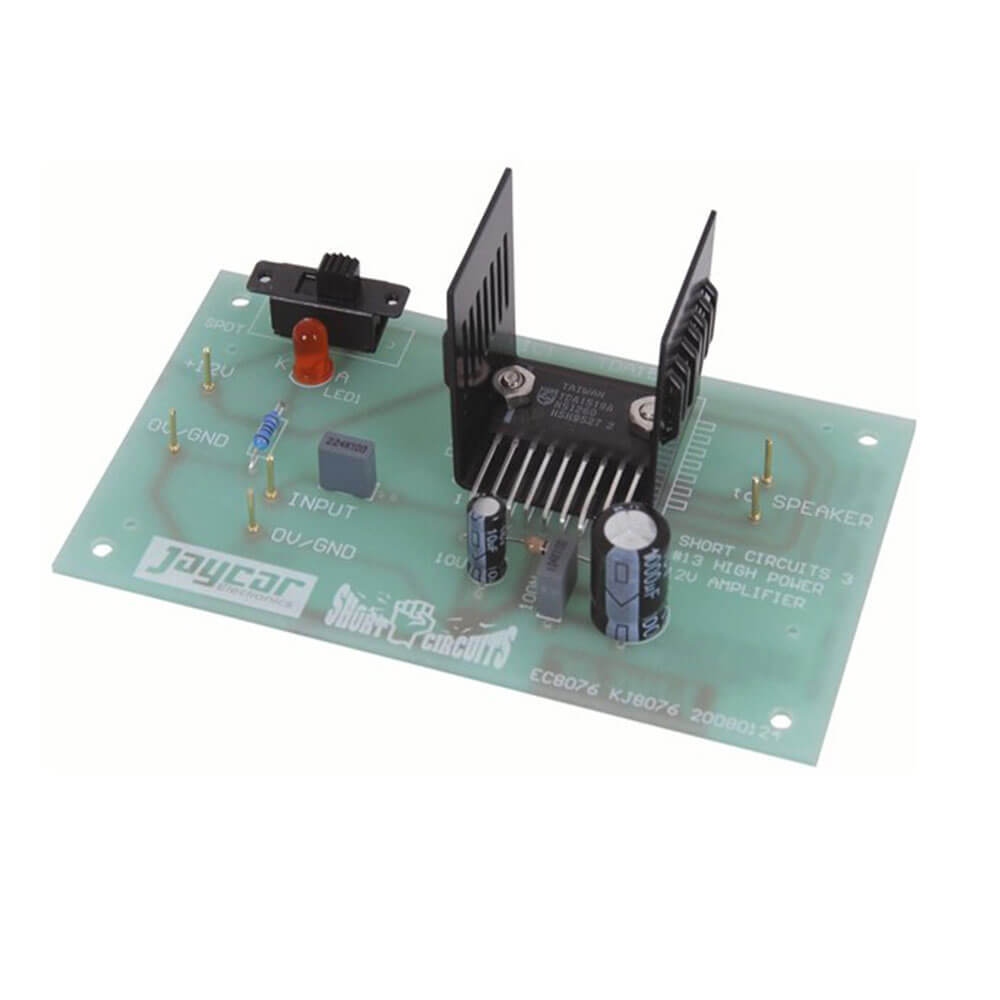

Short Circuits Three Project #13 High Power 12V Amplifier

Assembly Required

This amplifier on a chip can deliver about 13.5 watts into a ohm speaker. That's quite loud! Kit includes PCB, amplifier IC, heatsink and all electronic components. Speaker and 12VDC power required.

Product Specifications

• Kit Form : Short Form (circuit only)
• Kit Group : Short Circuit Series
• Difficulty : Simple
• Application Field : Amplifier
• Contains High Voltage Components : false
• Instructions Included : false
• PCB Width : 60.0mm
• PCB Length : 105.0mm
• Volume Number : Volume 3
• Project Number(s) : 13

• Length : 20 cm
• Width : 10 cm
• Height : 3 cm
